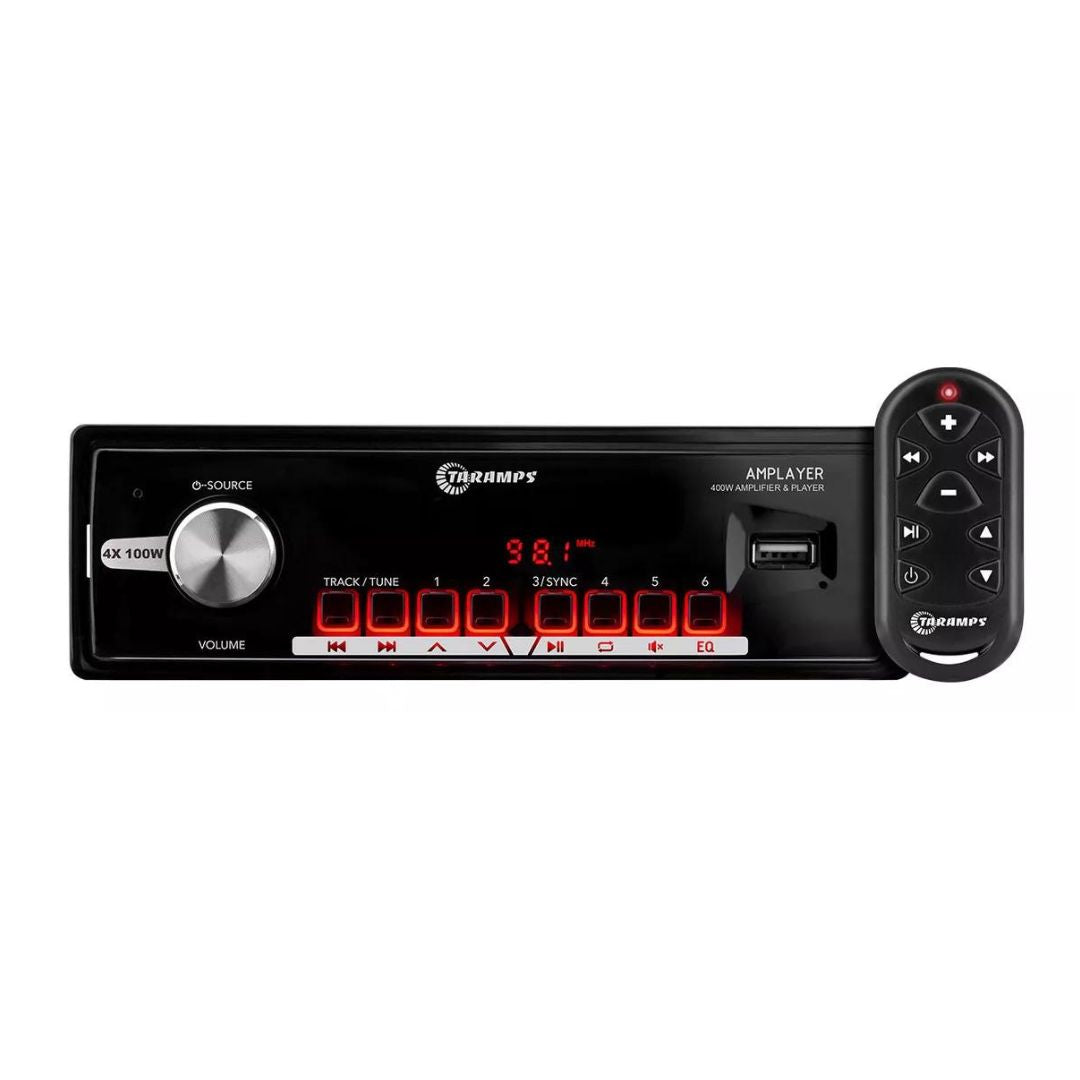

4x100w 400W Radio Player MP3 Bluetooth USB Car Sound 400 rms Taramps

You've probably heard that, to improve the sound inside your car, you need an amplifier. This is real because most players on the market have low power output.

But with the Taramps Amplayer 400, you don't have to worry anymore.
A powerful and versatile digital product, it offers 400 watts rms (4 x 100w at 2 ohms) and allows bridge connections (2 x 200 watts at 4 ohms).

Furthermore, it is equipped with remote control and integrated crossovers (hpf, lpf and full).
Due to its diversity, the radio player can be installed to amplify door and bonnet speakers in cars, trucks, pickup trucks, SUVs, motorcycle advertising boxes, 2-way kit, 4-way kit, coaxial, triaxial, quadriaxial, 4 inches , 5 inches, 6 inches, 6x9 inches, 5x7 inches, trio boxes, bob boxes, residential boxes, among others.

With FM reception, USB input and smartphone connectivity via Bluetooth, the Amplayer car radio is perfect for playing your favorite playlists, with more power and quality.

If your smartphone lacks battery, you can use the USB port to charge it.
All this and much more for your car audio, with the advantage of only taking up the original space of a 1-din player in your car.

Technical specifications:

• Operation class: class d.
It is the indication of the construction of an amplifier, class d (also called digital) due to the pwm (pulse width modulation) used in its operation, it allows a small, efficient amplifier with reduced heating compared to other construction classes .

• Number of channels: 04.
Number of channels to use in your project, with this specific model, you have the option of connecting only 1 channel.

• Power in high power mode @14.4v.
2 Ohms: 400 watts rms (4x 100 watts rms).
4 Ohms: 272 watts rms (4x 68 watts rms).
2 bridge channels @14.4vdc - 4 ohms: 400w rms (2 x 200 watts rms).
The power, with a voltage of 14.4 volts, is related to the operation of the vehicle/power source.

• Power in low power mode @14.4v.
2 Ohms: 160 watts rms (4x 40w rms).
4 Ohms: 200 watts rms (4x 25w rms).
2 bridge channels @14.4vdc - 4 ohms: 160 watts rms (2 x 80 watts rms).
The power, with a voltage of 14.4 volts, is related to the operation of the vehicle/power source.

Audio format: mp3 / wma.
Type of media that can be used and played by the player.

FM: 87.5MHz to 108MHz.
Search range for tuning FM stations.

Bluetooth version: 4.0 sbc/a2dp.
Bluetooth version that guarantees compatibility with certain equipment.

• Equalization mode: pop, rock, jazz, country, normal.
Standard and preset EQs for quick adjustment.

• Frequency response: 10hz ~ 20kHz(-3db)
With the frequency response, it is possible to identify the application of the amplifier, as well as the speaker or any other type of transducer you are using is understood within this response, meaning that we can use this product in your project.

• Fixed crossover low pass (lpf): 90hz
Lpf or low pass filter (term in English) means low pass filter, that is, it allows everything below this reference to be reproduced and anything above this indication will not be used. A common use of this function is to reduce the presence of voice in subwoofers.

• Fixed high pass crossover (hpf): 90hz
HPF or high pass filter (term in English), means high pass filter, that is, it allows everything above this reference to be reproduced. The common use of this function is to reduce the presence of bass in door speakers, for example.

• Supply voltage: 9 to 16v.
It is the operating indication of the amplifier where it will have the minimum and maximum voltage for its operation, outside of this specification it will not turn on or activate protection.

• Consumption at rest: 0.5a.
This is the reference for the consumption of the amplifier turned on and without music.

• Maximum musical consumption: low power 14.4v dc: 7a.
high power 14.4v dc: 18.5a.
This is the estimated consumption of the amplifier working at minimum impedance, playing music at maximum volume.

• Maximum consumption: low power 14.4v dc: 14a.
high power 14.4v dc: 38a.
Reference for bench/laboratory tests under specific conditions with resistive load, fixed frequency and stable power supply.

• Protection system: short at output.
This system exists to protect the operation of the amplifier. It can be related to the output, when we have connections below the minimum impedance, a short circuit in the installation or even speakers with problems.

• Dimensions: width 18.8cm x height 5.8cm x depth 14.7cm.
Extreme product dimensions.

Contains:
-01 4x100w 400W Radio Player MP3 Bluetooth USB Car Sound 400 rms Taramps
