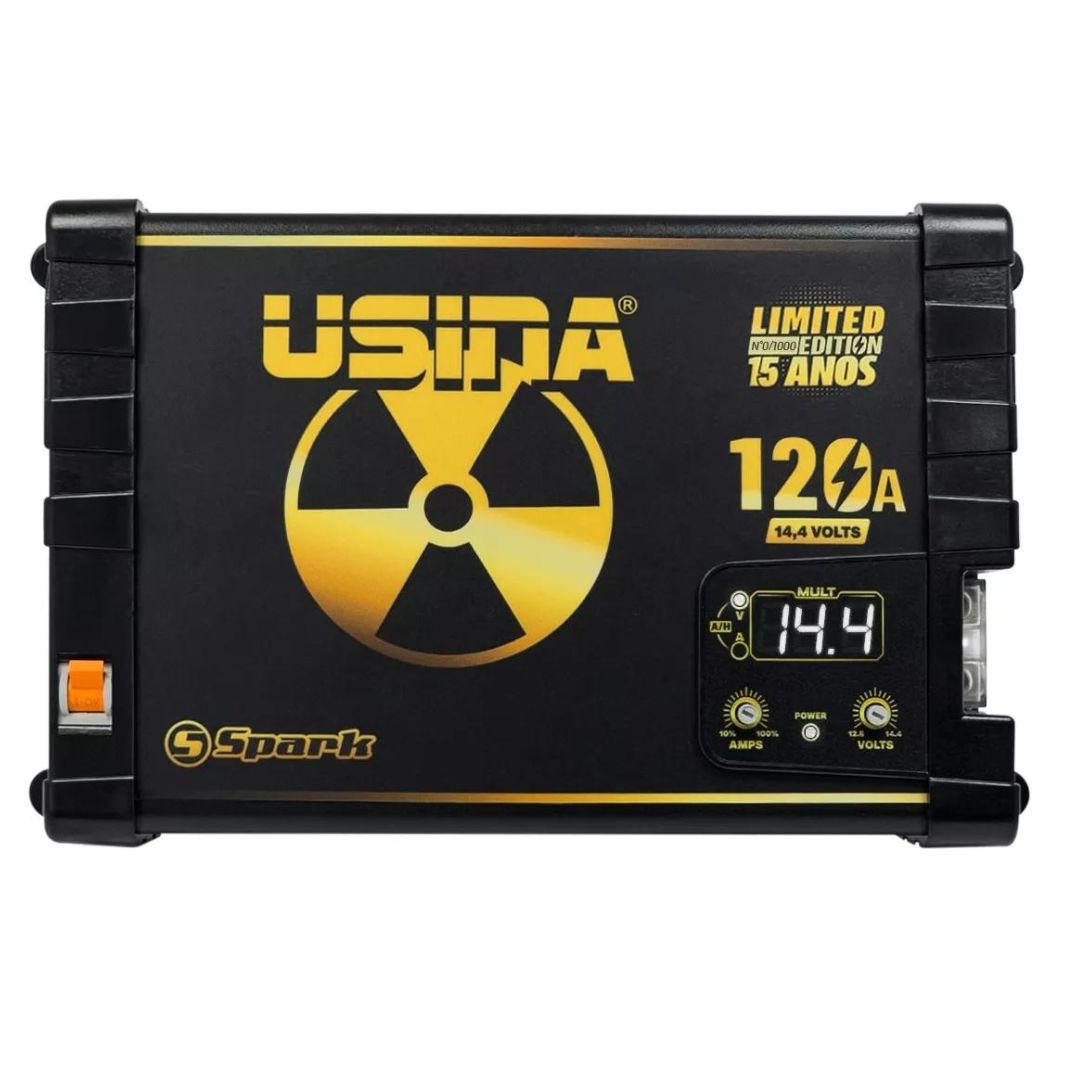

Usina 120A Bivolt Automotive Car Source Charger Power Supply Battery Spark

Fonte Usina was created with the aim of powering the car's sound system without letting the batteries run out, even with the sound playing for several hours. It can also be used as a direct power supply, supplying CD players, power modules, Bob boxes, etc.

Resources:
Smart Cooler: The cooler is activated according to the needs of the power supply, providing quieter operation and increasing its useful life.

Smart Charger: Intelligent system that monitors and controls the charging, maintenance and equalization of the battery charge, developed to control the charge of the battery connected to the source. It monitors and analyzes the ideal charge that the battery must receive to be fully charged and not overcharge.

Digital Display: With Integrated Voltmeter/Ammeter functions and amp hour counter (automatically switches every 3 seconds).

Amp/hour function: Indicates the average charge carried out per hour when the two LEDs are on. This information is displayed at 30 second intervals and is reset after the source is restarted.

Datasheet:

Input Voltage: Automatic Bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
Consumption 127Vac: 23A (maximum)
220Vac consumption: 13A (maximum)
Output Voltage: 12.5V @ 14.4Vdc (+-1%)
Output Current: 120A @ 12.5Vdc (+-5%)*
Output Power: 1500 Watts (maximum)**
Yield: 85%
Input Power: 1800 Watts (maximum)**
Input Cable: 3x1.5mm² - 2P+T
Input Protection: 25A Circuit Breaker
Output Cable: 25mm²
Recommended Extension: 2.5mm² (max 30 meters)
Weight: 2,565 kg
Approximate Dimensions (LxWxH): 308mmX190mmX75mm***
Comments:
*Current and power measured in resistive load
**Output power may vary depending on mains voltage and usage conditions
***The measurements referring to the dimensions of the fonts have a variation of approximately 2mm

Contains:
-01 Usina 120A Bivolt Automotive Car Source Charger Power Supply Battery Spark
