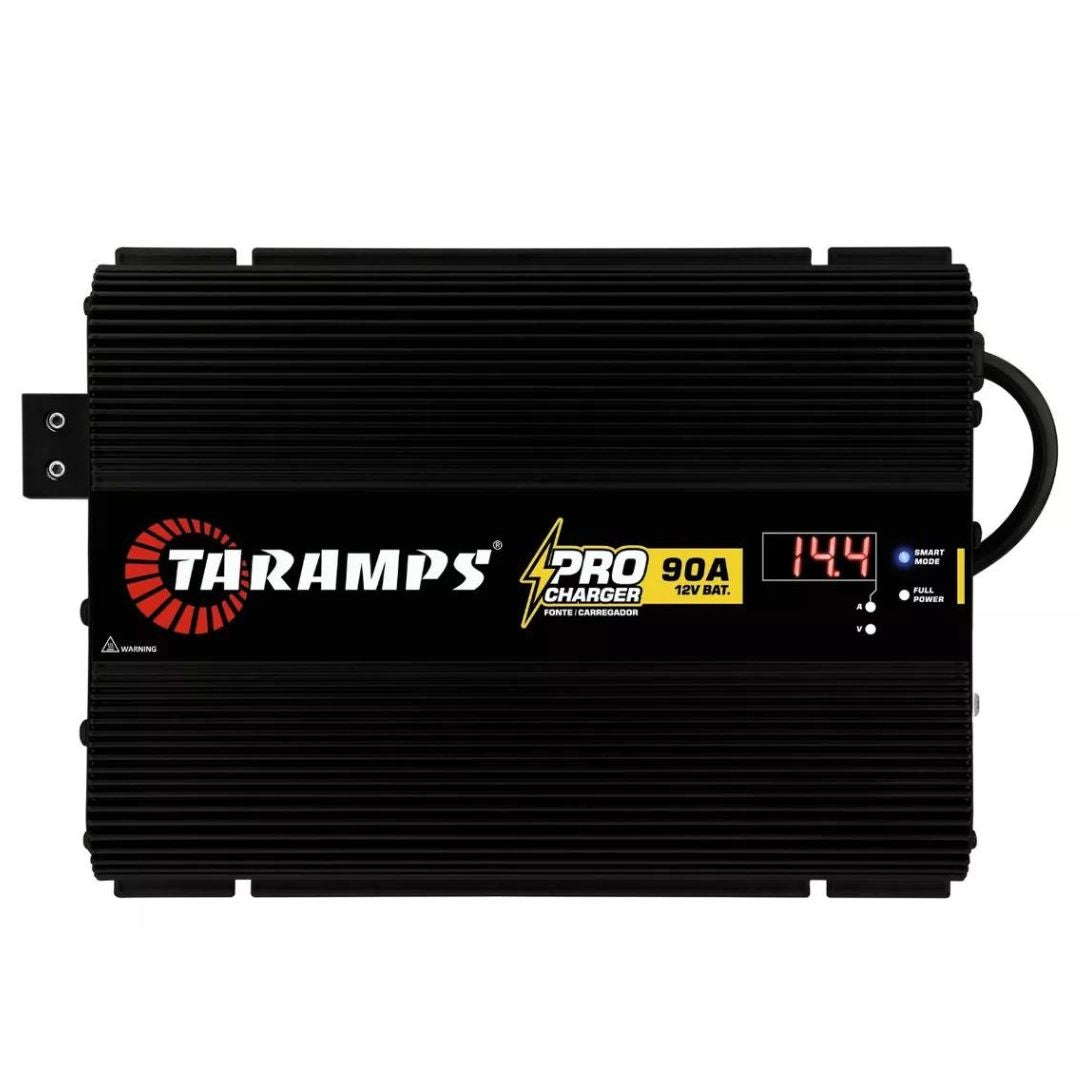

Automotive Source Pro Charger Battery Charger 90 Amps Audio Som Bivolt Taramps

Developed with high technology, the Pro Charger 90A offers intelligent features for recharging batteries and powering car sound systems.

Its sensors automatically identify the connected load, adjusting to usage needs. When recharging batteries, it analyzes their characteristics and conditions, optimizing performance by dosing voltage and current as necessary.

After charging, it performs float and equalization cycles to ensure efficient and safe recharging. If the sound is turned on during recharging, the source automatically switches to Full Power mode, providing up to 90A to ensure there is no power outage. When you turn off the sound, it automatically returns to trickle charge mode.

In systems without batteries, such as BOB speakers, the dynamic power is automatically released with the musical signal, guaranteeing high system performance. In this power supply mode, it is possible to adjust the output voltage to 12.6V dc, 13.8V DC or 14.4V dc.

With the Pro Charger 90A, practicality and high performance go hand in hand.

Technical specifications:

• Power supply: automatic bivolt (127/220v ac).
It can operate on voltages of 127 volts or also on 220 volts, that is, on any type of socket we have in Brazil.

• Voltage range on 127v network: 90 to 140v ac.
Variable voltage limits within the 127 volt specification.

• Voltage range on 220v network: 190 to 250v ac.
Variable voltage limits within the 220 volt specification.

• Max rated current. Output: 90a.
Maximum current that the source delivers while maintaining a stable output voltage, at a constant 90 amps.

• Max power. Output: 1300w.
Maximum output power considering up to 90 amps with 14.4 volts.

• Max consumption. On 127v network: 18a.
Reference of maximum input consumption from the electrical network with the source at maximum power.

• Max consumption. On 220v network: 10a.
Reference of maximum input consumption from the electrical network with the source at maximum power.

• Maximum fluctuation at full load (90a @14.2v): <2%.
Variation that we will have with the source working with total output current.

• Input fuse (internal): 25a.
Internal fuse to avoid problems in cases of emergency, can only be replaced by authorized assistance.

• Output voltages: 12.0v to 14.5v.
Maximum voltages considering possible adjustments and voltage selections.

• Dimensions (wxxc): width 18.2cm x height 5.2cm x depth 25.6cm.
Extreme product dimensions.

• Weight: 1.86 kg.
Gross source/charger weight.

Contains:
-01 Pro Charger Source 90 Amps 12V
