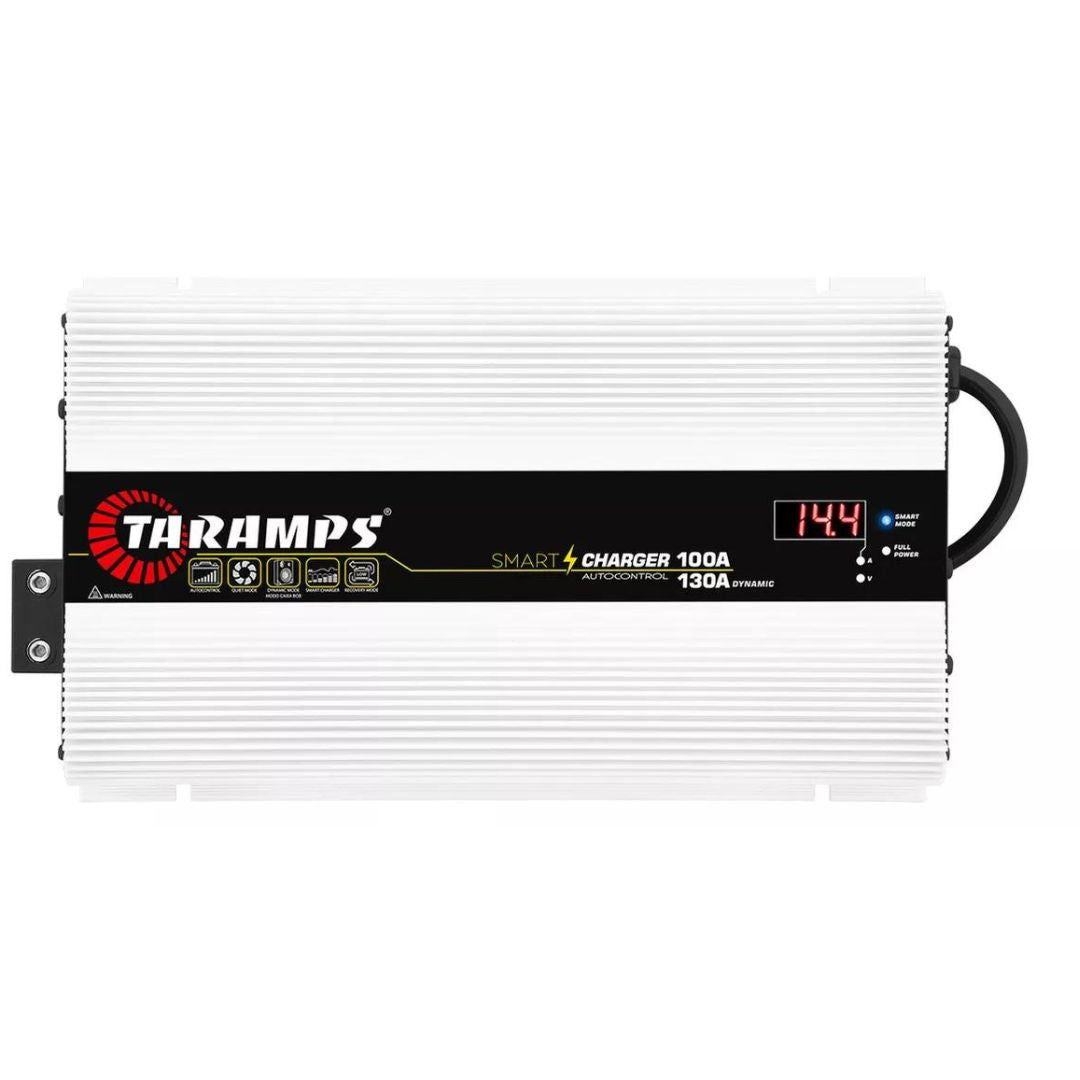

Smart Charger Automotive Sound Battery Supply 100A/130A Bivolt 1850W Taramps

Recharging your batteries has never been easier! Developed with the latest technology, the SMART CHARGER 100A/130A is an intelligent battery source and charger. In other words, it thinks for you, allowing practical use, not requiring technical knowledge from the user to recharge the batteries.

Just turn it on, and the Smart Charger will do the rest, adjusting automatically and seeking to optimize battery recharging. It can be used as a battery charger for cars, trucks, vans, motorcycles, SUVs, pickups, adjustable power supply at 12.6v, 13.8v or 14.4v, auxiliary for automotive sound systems such as bob box, trio box , among others.

With automatic bivolt power supply, it provides up to 130 dynamic amps at 14.4v. In addition, it has a display with voltmeter and ammeter that allows you to monitor the status of your installation. With the Smart Charger you save time for what really matters.

Check out some functions of the Smart Charger 100A/130A:

Self-control - it identifies the capacity (“size”) of the battery and its charge level, intelligently adjusting the voltage and current level needed at that moment. This ensures effective recharging and prevents damage to the battery.

Quiet mode - silent source, with 2 smart coolers that will only work if necessary.

Recovery mode - automatic detection of the characteristics of the load connected to its output.

If you have batteries, the source analyzes their characteristics and conditions and recharges them, seeking the best performance.

If the battery charge level is critical, the source automatically adjusts the output current, intelligently charging the batteries.

Dynamic mode (bob box) - this automatically activated mode allows the source to release up to 100a while it has a musical signal, with or without batteries at the output. With this, the system will have up to 30% more power compared to a conventional 130a source.

And best of all: to activate all available functions, just press a single button.

Technical specifications:

• Power supply: automatic bivolt (127/220v ac).
It can operate on voltages of 127 volts or also on 220 volts, that is, on any type of socket we have in Brazil.

• Voltage range on 127v network: 90 to 140v ac.
Variable voltage limits within the 127 volt specification.

• Voltage range on 220v network: 190 to 250v ac.
Variable voltage limits within the 220 volt specification.

• Max rated current. Output: 100a, 130a* dynamic for up to 2 minutes constant.
Maximum current that the source delivers while maintaining a stable output voltage, being 100 amps constant or 130 amps in dynamic mode playing music.

• Max power. Output: 1850w.
Maximum output power considering up to 130 amps with 14.4 volts.

• Max consumption. On 127v network: 22a.
Reference of maximum input consumption from the electrical network with the source at maximum power.

• Max consumption. On 220v network: 14a.
Reference of maximum input consumption from the electrical network with the source at maximum power.

• Maximum fluctuation at full load (130a @14.2v): <2%.
Variation that we will have with the source working with total output current.

• Input fuse (internal): 20a.
Internal fuse to avoid problems in cases of emergency, can only be replaced by authorized assistance.

• Output voltages: 12.0v to 14.5v.
Maximum voltages considering possible adjustments and voltage selections.

• Max power. Input: 3000va or 2000w (fp:~0.58 capacitive).
Input consumption reference, indicated for sizing the electrical network and also used to identify the need for a generator.

• Consumption in stand by turned off, but connected to the socket: 3w.
Consumption with the source turned off and connected to the socket.

• Dimensions (wxxc): width 18.2cm x height 5.2cm x depth 31.9cm.

Contains:
-01 Smart Charger Automotive Sound Power Supply Battery Bivolt 1850 W Taramps
