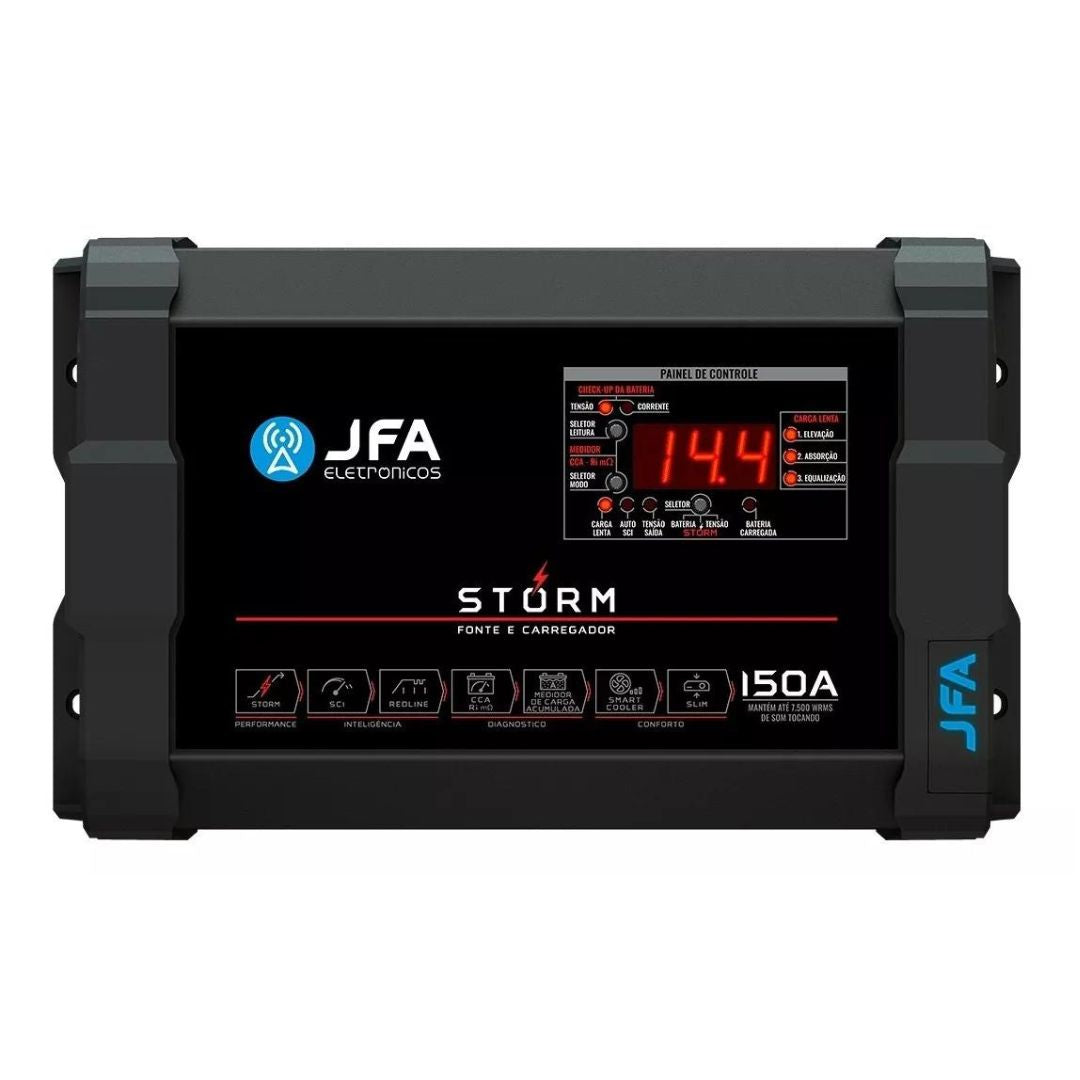

Storm 150A Bivolt Automotive Charger Source Car Power Supply Battery JFA

Storm is more than a font. It is the revolution of everything the JFA has ever produced. Equipped with the latest technology, compact and with exclusive functions, Storm is the ideal choice for charging, powering and also monitoring the operation of automotive batteries.

It brings together the main characteristics of the SCI and Redline lines and inaugurates a new concept of Smart Source.
Storm’s differences:
- Storm function that raises the output voltage to 15V for a short time, giving maximum performance to the amplifier;

- Intelligent Charging System (SCI) and Slow Charging System in three phases;
- Exclusive battery diagnostic function, in just 10 seconds, using the CCA meter and real analysis of the charge accumulation capacity;
- Intelligent ventilation system with dynamic PWM control;
- Compact design, smaller than the previous lines, and harmonious, ideal for any project.

Technical specification:
• Consumption at Maximum Load: 2,250W
• Maintains Up to 7,500W RMS of Sound
• Automatic Bivolt: 110/220Vac
• Bivolt Mains Input: 90 to 140Vac/ 170 to 240Vac
• Selectable Output Voltage: 12.6V / 13.0V / 13.4V / 13.8V / 14.0V / 14.4V
• Smart charging system: 13.8 / 14.4 cyclic
• Output Current: 150 Amps
• SCI Function: Intelligent Charging System
• Voltmeter / ammeter accuracy: 99% / 96%
• Display to Monitor Voltage or Current
• Slow Load System (3 phases): Elevation / Absorption / Equalization
• Battery Level and Full Charge Indicator LEDs
• Protections: Overload, Output Short and Temperature
• Smart Cooler - Intelligent Ventilation System
• Control: Dynamic by PWM
• Topology: Half Bridge
• Weight: 2,250 kg
• Approximate Measurements (WxHxD): 28.9x17.2x9.5cm

Contains:
-01 Storm 150A Bivolt Automotive Charger Source Car Power Supply Battery JFA
