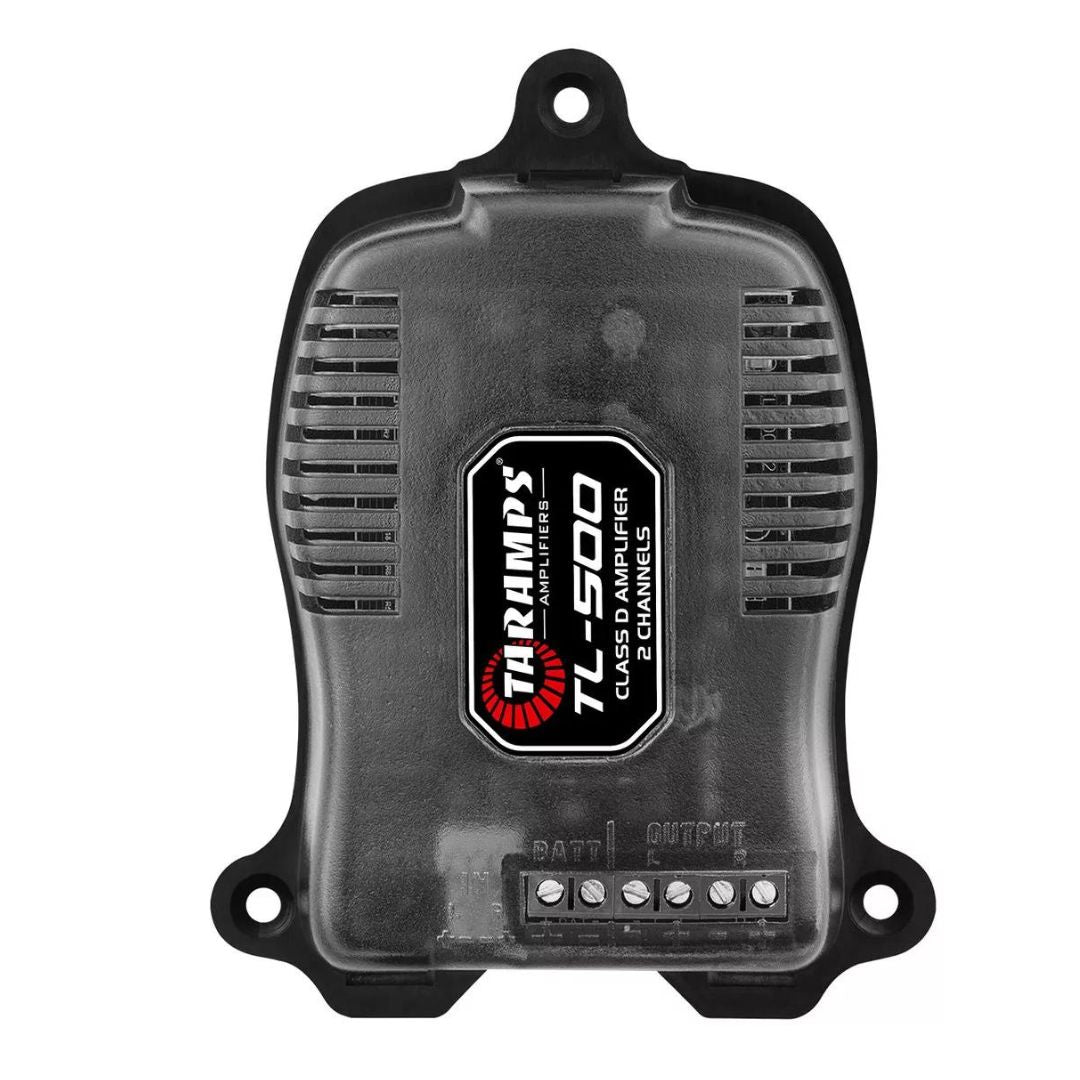

TL500 90W 2 Ohms Automotive Audio Sounde Ampliflier Speaker Taramps

The TL 500 digital amplifier module is ideal for those looking to upgrade their car sound.
It is a full range and stereo amplifier, with a maximum power of 90 watts rms at 2 ohms, with 2 channels of 45 watts rms each.

It has a wired input with innovative technology for automotive sound systems with automatic activation by audio level (a.r.t system), perfect for use with original factory players and multimedia. Its small size facilitates installation and fixing, without the need for major modifications, saving space in your vehicle.

Its characteristics are ideal for boosting door and lid speakers in cars, trucks, pickup trucks, SUVs, motorcycle advertising boxes, 2-way kits, 4-way kits, coaxial, triaxial, quadriaxial, 4 inches, 5 inches, 6 inches, 6x9 inches, 5x7 inches, trio boxes, bob boxes, residential boxes, among others.
Allowing much more performance and quality.

TL-500 improving your car sound system with Taramps quality.

Technical specifications of the TL 500 sound module:
• Operation class: class d.
It is the indication of the construction of an amplifier, class d (also called digital) due to the pwm (pulse width modulation) used in its operation, it allows a small, efficient amplifier with reduced heating compared to other construction classes .

• Number of channels: 2.
Number of channels to use in your project, with this specific model, you have the option of connecting with 2 channels.

• Power @12.6v – 2 ohms, stereo: 2 x 95 watts rms.
The power, with a voltage of 12.6 volts, is related to the operation of the vehicle/power source.
• Minimum stereo output impedance: 2 ohms.

Association with the speaker result, where, for example, we can connect two 4 ohm speakers per channel for this result.

• TL500 stereo frequency response: (full range): 80Hz to 40KHz.
With the frequency response, it is possible to identify the application of the amplifier, as well as the speaker or any other type of transducer you are using is understood within this response, meaning that we can use this product in your project.

• Supply voltage: 8 to 16v.
It is the operating indication of the amplifier where it will have the minimum and maximum voltage for its operation, outside of this specification it will not turn on or activate protection.

• Maximum musical consumption: @13.8vdc: 3.8a.
This is the estimated consumption of the amplifier working at minimum impedance, playing music at maximum volume.

• Maximum consumption in sinusoidal signal: @13.8vdc: 7.6a.
Reference for bench/laboratory tests under specific conditions with resistive load, fixed frequency and stable power supply.

• Protection system: thermal and short output protection.
This system exists to protect the operation of the amplifier. It can be related to the output, when we have connections below the minimum impedance, a short circuit in the installation or even speakers with problems.

This protection may also occur due to voltages outside the operating range, or even thermal protection that occurs due to conditions in which the amplifier heats up above normal.

• Dimensions: width 8.9cm x height 2.9cm x depth 11.9cm.
• Weight: 100 grams.

Contains:
-01 TL500 90W 2 Ohms Automotive Audio Ampliflier Module Taramps
