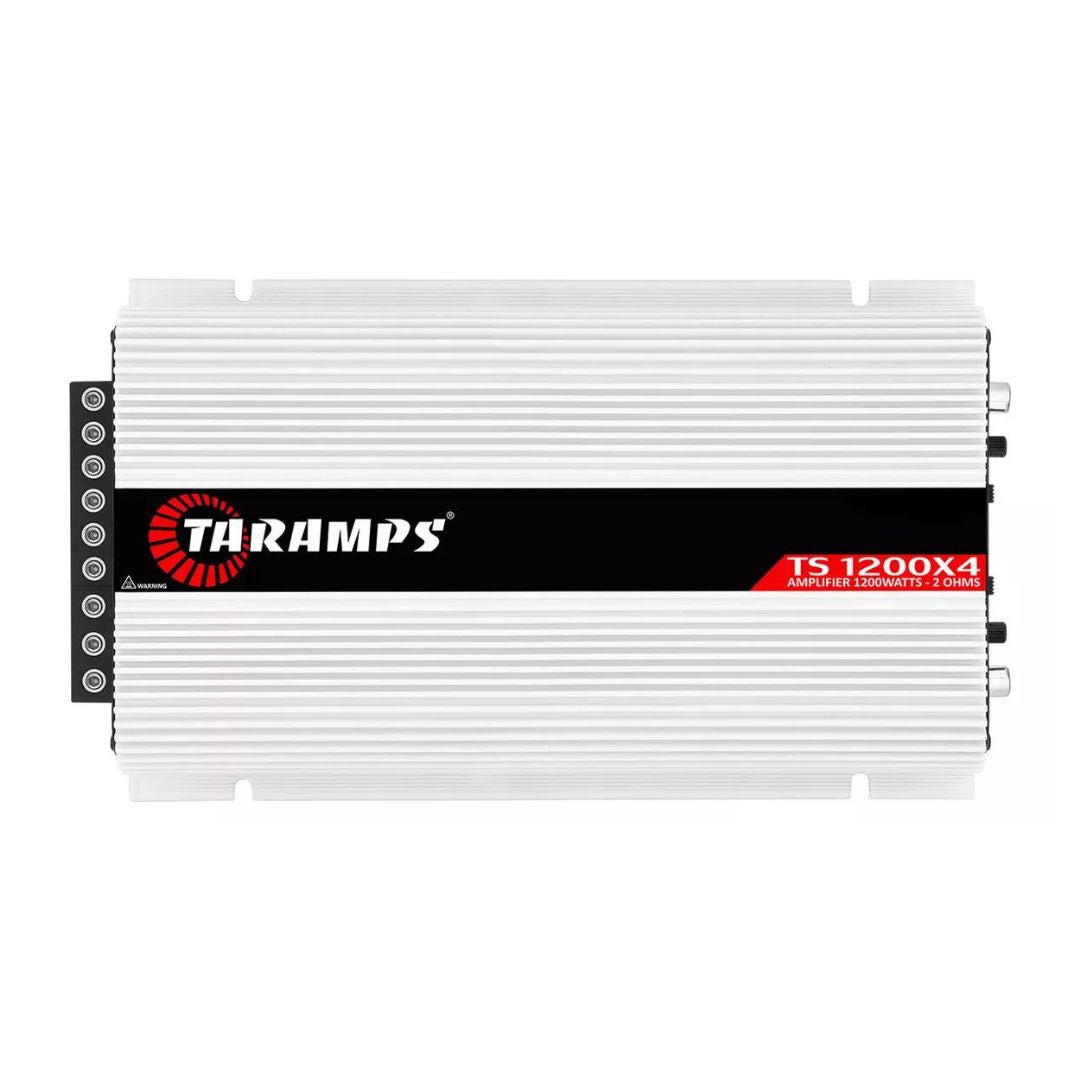

TS 1200x4 1200 W 2 Ohms Automotive Audio Sound Module Amplifier Taramps

The Taramps TS 1200X4 digital amplifier module was developed with the highest performance for the most varied types of automotive sound systems. It is a stereo multichannel, with 4 channels of 300 watts rms at 2 ohms, and allows bridge connection, with 2 channels of 600 watts rms at 4 ohms, with a maximum power of 1200 watts rms. The ts 1200×4 is full range and can be used with the most varied models of speakers, drivers and super tweeters.

A new feature of this product is the wired input of 4 individual channels and automatic activation, serving original players and multimedia, eliminating the need for adapters and maintaining the same originality as your car. Another point to be highlighted is the new power and output connector, which, in addition to being robust, guarantees more practicality and safety in installation.

It has an integrated crossover (hpf, lpf, full) that configures the amplifier's operating mode. Gain adjustment that allows adjustment to the output signal levels of practically all CD/DVD models and MP3 players on the market. Indicative LED, showing that the amplifier is on.

Due to its diversity, it can be installed to amplify door and cap speakers in cars, trucks, pickup trucks, SUVs, motorcycle advertising boxes, 2-way kit, 4-way kit, coaxial, triaxial, quadriaxial, 4 inches, 5 inches , 6 inches, 6x9 inches, 5x7 inches, trio boxes, bob boxes, residential boxes, among others.

All this and much more to improve your sound system, with the quality you deserve.

Technical specifications:

• Operation class: class d.
It is the construction indication of an amplifier, class d (also called digital) due to the pwm (pulse width modulation) used in its operation, it allows a small, efficient amplifier with reduced heating compared to other construction classes .

• Number of channels: 4.
Number of channels to use in your project, with this specific model you have the option of connecting with 4, 3 and 2 channels.

• Power @14.4v – 2 ohms stereo: 4 x 300w rms.
The power with a voltage of 14.4 volts is related to the operation of the vehicle/power source.

• Power @14.4v – 4 ohms bridge: 2 x 600w rms.
The power with a voltage of 14.4 volts is related to the operation of the vehicle/power source.

• Minimum stereo output impedance: 2 ohms.
Association with the final result of speakers, where, for example, we can connect two 4 ohm speakers per channel for this result.

• Minimum bridge output impedance: 4 ohms.
Association with the final result of speakers, where, for example, we can connect two 8 ohm speakers per channel (bridge) or just one 4 ohm speaker for this result.

• Minimum RCA input sensitivity: 4v (min.) / 250mv (max.).
Lower voltage required for maximum results with the amplifier, that is, with low volume on the radio, we will achieve good results.

• Minimum wire input sensitivity: >10v (min.) / 3v (max.).
Lower voltage required for maximum results with the amplifier, that is, with low volume on the radio, we will achieve good results.

• Frequency response: (full range): 8hz to 25kHz (-3db).
With the frequency response it is possible to identify the application of the amplifier, so if the speaker or any other type of transducer you are using is understood within this response, it means that we can use that product in your project.

• Fixed crossover low pass (lpf): 90hz.
Lpf or low pass filter (term in English) means low pass filter, that is, it allows everything below this reference to be reproduced and what is above this indication will not be used, a common use of this function is to reduce the presence of voice on subwoofers.

• Fixed high pass crossover (hpf): 90hz.
HPF or high pass filter (term in English), meaning high pass filter, that is, it allows everything above this reference to be reproduced, the common use of this function is to reduce the presence of bass in door speakers, for example .

• Supply voltage: 9 to 16v.
It is the operating indication of the amplifier where it will have the minimum and maximum voltage for its operation, outside of this specification it will not turn on or activate protection.

• Consumption at rest: 0.9a.
This is the reference for the consumption of the amplifier turned on and without music.

• Maximum musical consumption: @14.4vdc: 55a.
This is the estimated consumption of the amplifier working at the minimum impedance playing music at maximum volume.

• Maximum consumption in sinusoidal signal: 110a.
Reference for bench/laboratory tests under specific conditions with resistive load, fixed frequency and stable power supply.

• Protection system: short at output.
This system exists to protect the operation of the amplifier. It can be related to the output, when we have connections below the minimum impedance, a short circuit in the installation or even speakers with problems.

• Dimensions: width 13.8cm X height 4.8cm X depth 25cm.
Extreme product dimensions.
• Weight: 1.24 kg
Gross weight of the product.

Contains:
-01 TS 1200x4 1200 W 2 Ohms Audio Module Amplifier Taramps
