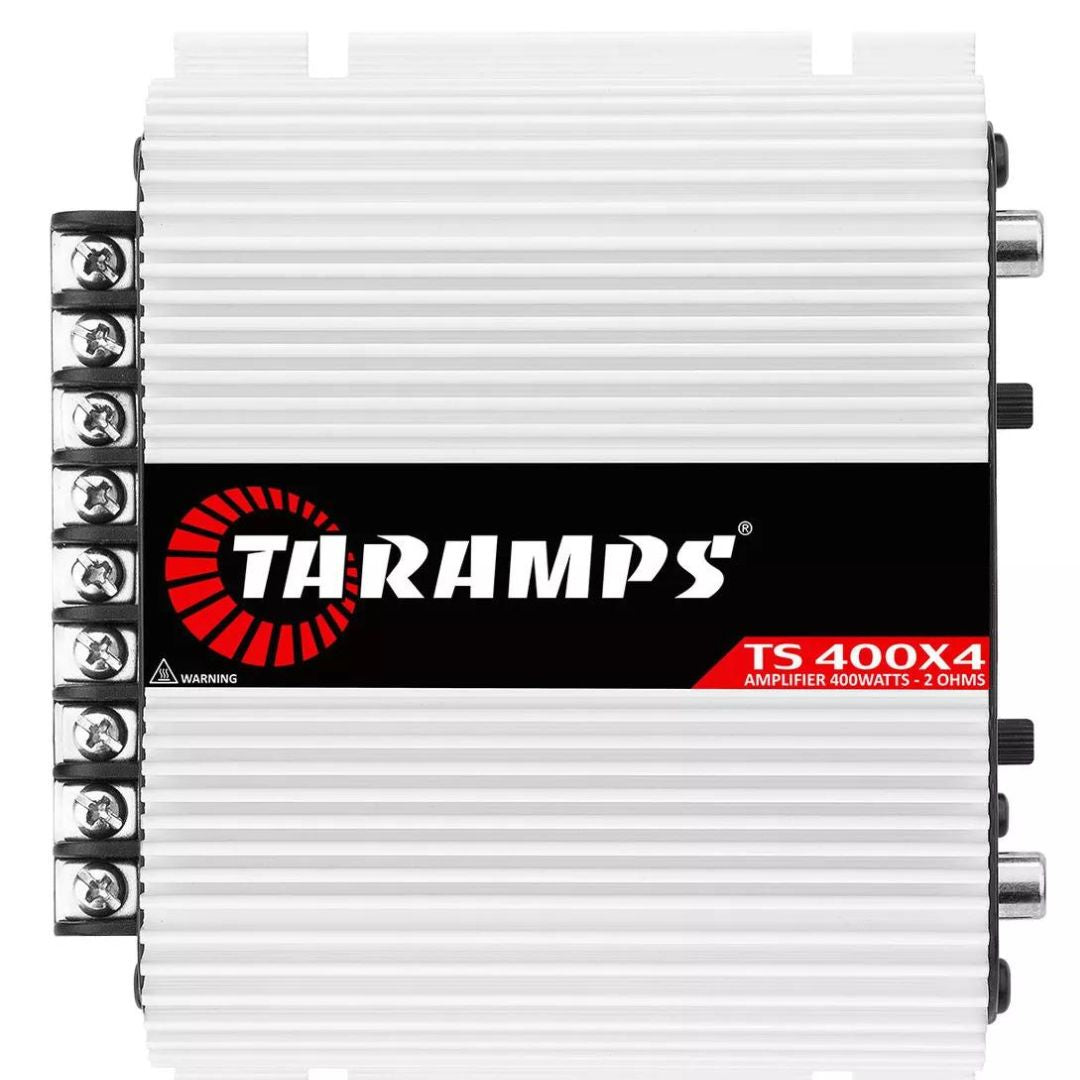

TS 400x4 400 W 2 Ohm Amplifier Module Automotive Sound Amplifier Taramps

The Taramps TS 400x4 2 ohm digital amplifier module was developed with the highest performance for the most varied types of automotive sound systems.

It is a stereo multichannel, with 4 channels of 100 watts rms at 2 ohms, and allows bridge connection, with 2 channels of 200 watts rms at 4 ohms, with a maximum power of 400 watts rms.

The TS 400X4 is full range and can be used with the most varied speaker models, subwoofer, horn, tweeter, midrange, woofer, midbass and super tweeters. It has an integrated crossover (hpf, lpf, full) that configures the amplifier's operating mode. Gain adjustment that allows adjustment to the output signal levels of practically all CD/DVD player models on the market. Indicative LED, which shows that the amplifier is on.

Due to its diversity, it can be installed to amplify door and cap speakers in cars, trucks, pickup trucks, SUVs, motorcycle advertising boxes, 2-way kit, 4-way kit, coaxial, triaxial, quadriaxial, 4 inches, 5 inches , 6 inches, 6x9 inches, 5x7 inches, trio boxes, bob boxes, residential boxes, among others.

All this and much more to improve your sound system, with the quality you deserve.

Technical specifications:
• Operation class: class d.
It is the indication of the construction of an amplifier, class d (also called digital) due to the pwm (pulse width modulation) used in its operation, it allows a small, efficient amplifier with reduced heating compared to other construction classes .

• Number of channels: 4.
Number of channels to use in your project. With this specific model, you have the option of connecting with 4, 3 and 2 channels.

• Power @13.8V – 2 ohms, stereo: 4 x 100w rms.
The power, with a voltage of 13.8 volts, is related to the operation of the vehicle/power source.

• Power @13.8v – 4 ohms, bridge: 2 x 200w rms.
The power, with a voltage of 13.8 volts, is related to the operation of the vehicle/power source.

• Minimum stereo output impedance: 2 ohms.
Association with the speaker result, where, for example, we can connect two 4 ohm speakers per channel for this result.

• Minimum bridge output impedance: 4 ohms.
Association with the result of speakers, where, for example, we can connect two 8 ohm speakers per channel (bridge) or just one 4 ohm speaker for this result.

• Minimum RCA input sensitivity: 200mV.
Lower voltage required for maximum results with the amplifier, that is, with low volume on the radio, we will achieve good results.

• Frequency response: (full range): 18hz to 30khz (-3db).
With the frequency response, it is possible to identify the application of the amplifier, as well as the speaker or any other type of transducer you are using is understood within this response, meaning that we can use this product in your project.

• Low pass crossover. (LPF) fixed: 90hz.
Lpf or low pass filter (term in English) means low pass filter, that is, it allows everything below this reference to be reproduced and anything above this indication will not be used. A common use of this function is to reduce the presence of voice in subwoofers.

• Fixed high pass crossover (hpf): 90hz.
HPF or high pass filter (term in English), means high pass filter, that is, it allows everything above this reference to be reproduced. The common use of this function is to reduce the presence of bass in door speakers, for example.

• Supply voltage: 8 to 16v.
It is the operating indication of the amplifier where it will have the minimum and maximum voltage for its operation, outside of this specification it will not turn on or activate protection.

• Consumption at rest: 0.8a.
This is the reference for the consumption of the amplifier turned on and without music.

• Maximum musical consumption: @13.8vdc: 16.5a.
This is the estimated consumption of the amplifier working at minimum impedance, playing music at maximum volume.

• Maximum consumption in sinusoidal signal: @13.8vdc: 33a.
Reference for bench/laboratory tests under specific conditions with resistive load, fixed frequency and stable power supply.

• Protection system: thermal and output short.
This system exists to protect the operation of the amplifier. It can be related to the output, when we have connections below the minimum impedance, a short circuit in the installation or even speakers with problems.
This protection may also occur due to voltages outside the operating range, or even thermal protection that occurs due to conditions in which the amplifier heats up above normal.

• Dimensions: width 13.8cm X height 4.9cm X depth 12.1 cm.
Extreme product dimensions.

• Weight: 600 grams.
Gross weight of the amplifier.

Contains:
-01 TS 400x4 2 ohm amplifier module
