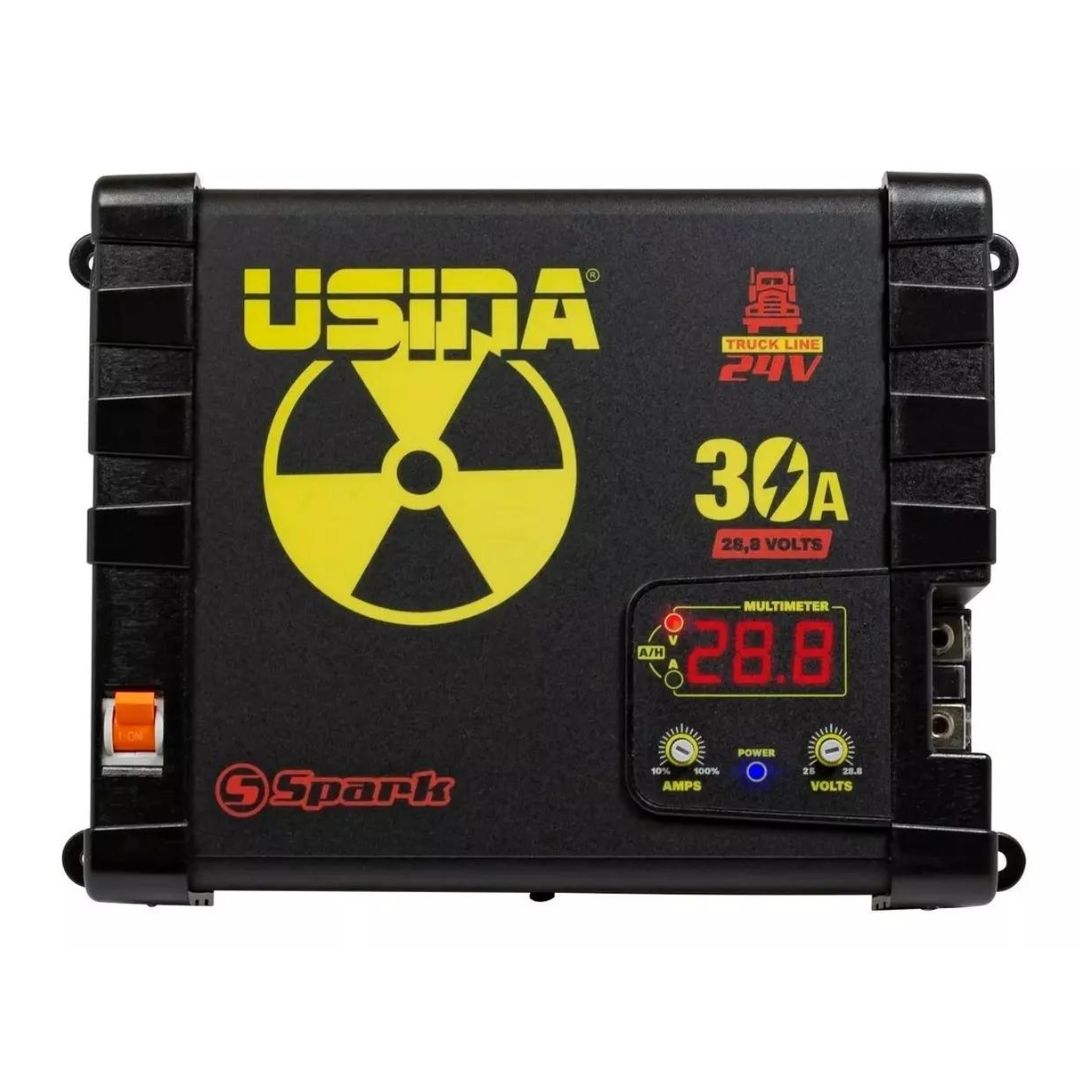

Usina 30A Bivolt Automotive Source Charger Car Power Supply Battery Spark

The Usina 30A - 24V - TRUCK LINE battery source and charger provides quality and efficiency for automotive systems. The 30A - 24V model has a compact and efficient design, ideal for those looking for more energy with less space. Check out the main features:

Low voltage on the AC network: The source goes into protection if the voltage on the AC network reaches the minimum limit.
Power supply: Powers the car's sound system, preventing battery discharge even with the sound playing for several hours. It can also be used as a direct power supply, powering CD players, amplifiers, power modules, etc.
Adjustable stabilized output: Keeps the output stabilized at its normal voltage, even with variations in the network or consumption.
Current adjustment: Allows you to adjust the output current according to the user's needs.
Protection against short circuit and output overload.

Technical specifications:
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
Input Cable: 3x1.5mm² - 2P+T
Output cable: 10mm²
Consumption 127Vac: 11A (maximum)
220Vac consumption: 6A (maximum)
Output Current: 30A @ 25V (+-5%)
Recommended Extension: 2.5mm² (max 25 meters)
Input Power: 950 Watts (maximum)
Output power: 750 Watts (maximum)
Input voltage: Bi-volt Automatic
Output voltage: 25@28.8V (+- 1%)
Weight: 1.7kg
Yield: 87%

Contains:
-01 Usina 30A Bivolt Automotive Source Charger Car Power Supply Battery Spark
