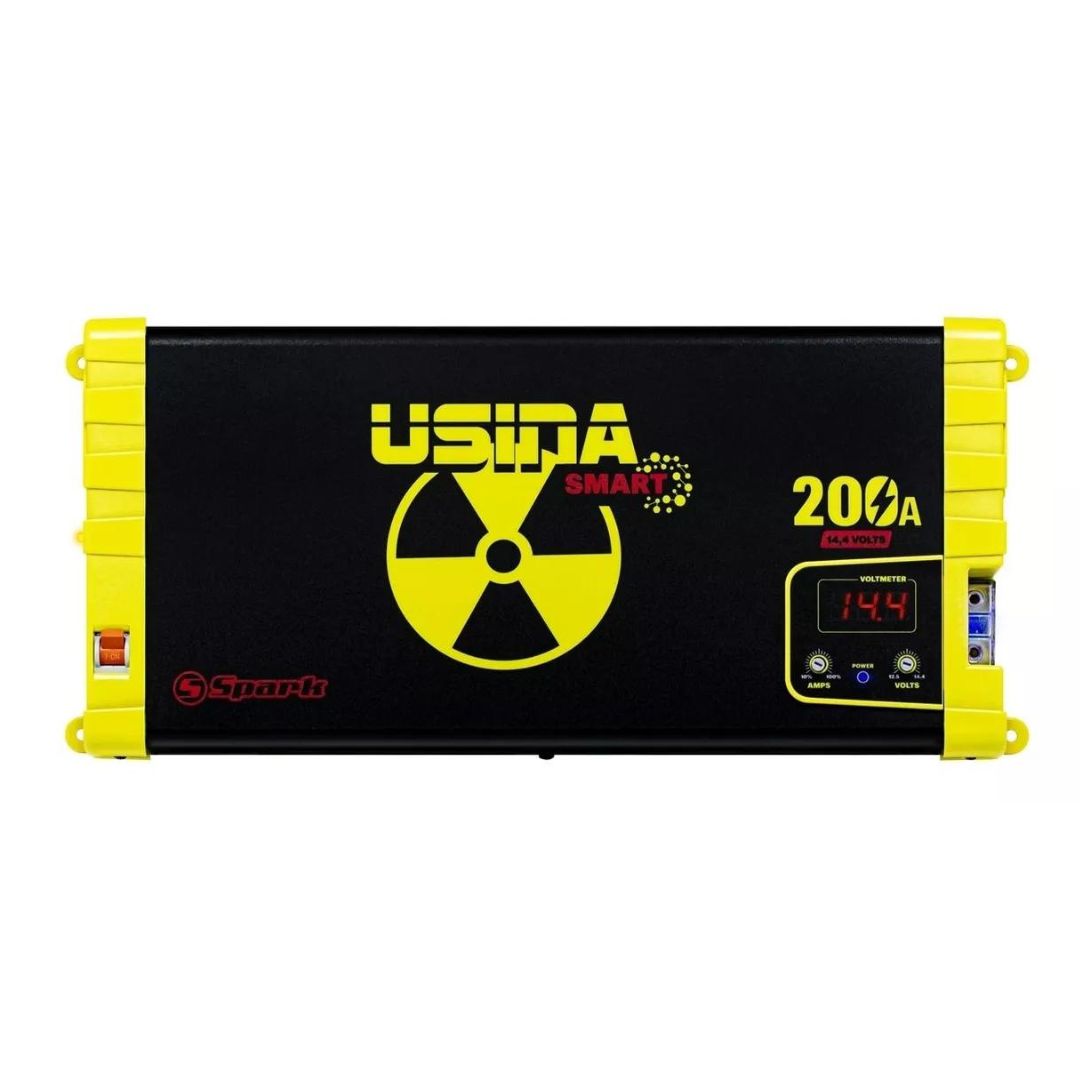

Usina Smart 200A 12V Bivolt Power Supply Automotive Bivolt Car Source Spark

The Fonte Usina was created with the main objective of powering the car's sound system without letting its batteries discharge, even with the sound playing for several hours. It can also be used as a direct power source (without the use of batteries) Powering the CD Player. Power modules, Bob box etc.

Resources
Smart Cooler: The cooler is activated according to the power supply's needs, providing quieter operation and increasing useful life

Smart Charger: Intelligent system that monitors, controls the charging and maintenance and equalization of the battery charge developed to control the charge of the battery connected to the source. It monitors and analyzes the ideal charge that the battery must receive to be fully charged and not overcharge.

Digital Display: With Voltmeter functions

Datasheet:
Input Voltage: Automatic Bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
Consumption 127Vac: 36A (maximum)
220Vac consumption: 21A (maximum)
Output Voltage: 12.5V @ 14.4Vdc (+-1%)
Output Current: 200A @ 12.5Vdc (+-5%)*
Output Power: 2500 Watts (maximum)**
Yield: 85%
Input Power: 2980 Watts (maximum)**
Input Cable: 3x2.5mm² - 2P+T
Input Protection: 32A Circuit Breaker
Output Cable: 50mm²
Recommended Extension: 4mm² (max 30 meters)
Weight: 3,670 kg
Approximate Dimensions (LxWxH): 445mmX195mmX75mm***
Comments:
*Current and power measured in resistive load
**Output power may vary depending on mains voltage and usage conditions
***The measurements referring to the dimensions of the fonts have a variation of approximately 2mm

Contains:
-01 Usina Smart 200A 12V Bivolt Power Supply Automotive Bivolt Car Source Spark
